Use case with the EEGMMI Dataset
WARNING
This notebook includes multiple trainings that can extend its total run time. We strongly suggest to run it with a device with CUDA installed.
Notebook Structure:
Introduction
This notebook will provide an additional example on how to use the selfeeg library on a real-world dataset. To do that, we will use the EEGMMI Dataset, which can be downloaded here. However, to facilitate things, we will work with an already preprocessed version of such dataset made available as a resource for the book
Deep Learning for EEG-based Brain-Computer Interface: Representations,
Algorithms and Applications, by Dr. Xiang Zhang and Prof. Lina Yao
Preprocessed data can be downloaded here
INFO
Self-Supervised Learning is usually beneficial when there is a small amount of supervision but several datasets to aggregate. In this case, we will work with a single dataset to keep things simple.
Self-Supervised Learning Pipeline
The notebook Build a self-supervised learning pipeline already provides a description on how to build a Self-Supervised Learning Pipeline with selfEEG. To summarize, typical steps include:
PRETRAINING:
define the pretraining dataloaders
define the data augmenter
define the pretraining model and optional training elements
pretrain the model
FINE-TUNING
define the fine-tuning dataloaders
define the fine-tuning model and optional training elements
transfer the pretrained encoder
fine-tune the model
FINAL EVALUATION
In addition, you can consult the following Review Paper, which provides additional references and datasets used to build EEG-Based Self-Supervised Learning Pipelines as well as a clear description on critical aspects to consider when designing SSL applications on biomedical signals.
Dataset Description and problem design
Dataset Description
As described in the official documentation, the EEGMMI dataset consists of over 1500 one- and two-minute EEG recordings, obtained from 109 volunteers. Subjects performed different motor/imagery tasks while 64-channel EEG were recorded using the BCI2000 system, with a sampling rate of 160 Hz. In particolar, the following tasks were performed, giving a total of 14 records per subjects:
Baseline, eyes open
Baseline, eyes closed
Task 1 (open and close left or right fist)
Task 2 (imagine opening and closing left or right fist)
Task 3 (open and close both fists or both feet)
Task 4 (imagine opening and closing both fists or both feet)
Task 1
Task 2
Task 3
Task 4
Task 1
Task 2
Task 3
Task 4
Designed Task
The investigated problem is a binary task based on Task 2 (imagine opening and closing left or right fist). Task 2 data will be used for the fine-tuning phase, while data from other tasks will be used for the pretraining phase. Training, validation, and test sets will be created via subject-based splits.
Package Import
First, let’s import all the packages necessary to run this notebook.
WARNING
to run this notebook you will also need matplotlib and scikit-learn, which are not dependecies of the selfeeg library. Be sure to install them in your environment.
[1]:
# IMPORT BASE PACKAGES
import os
import random
import pickle
import copy
import sys
sys.path.append('..') # needed if you run this inside the selfeeg/doc folder
import selfeeg
import selfeeg.augmentation as aug
import selfeeg.dataloading as dl
# IMPORT CLASSICAL PACKAGES
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from sklearn.metrics import classification_report
# Draw figures inline with this notebook
%matplotlib inline
# IMPORT TORCH
import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.utils.data import DataLoader, Dataset
# set seeds for reproducibility
seed = 1234
random.seed( seed )
np.random.seed( seed )
torch.manual_seed( seed )
plt.style.use('seaborn-v0_8-white')
plt.rcParams['figure.figsize'] = (15.0, 6.0)
Data Preparation
To run this notebook, it is necessary to download the preprocessed dataset from the following GitHub repository. In short, it necessary to:
clone the repository with
git clone https://github.com/xiangzhang1015/Deep-Learning-for-BCI.git(or download its zip version)Unzip all the files in the repository’s
datasetfolderPut all the unzipped files in a folder with the name
Data, placed in the current working directory, or, alternatively, just set the path below accordingly
Steps are simple but, just in case, here is a set of commands to include in a cell to automatically download and unzip the data in a Data folder
!mkdir Data
!wget https://github.com/xiangzhang1015/Deep-Learning-for-BCI/archive/refs/heads/master.zip
!unzip master.zip "Deep-Learning-for-BCI-master/dataset/*"
!mv -v Deep-Learning-for-BCI-master/dataset/* Data
!rm master.zip
Downloaded data are 109 2-dimensional numpy arrays where each file collects all the records of the same subject, already well-preprocessed.
Since we are working with a single dataset that can be totally preloaded, there’s no need to use the dataloading module, which is designed for a collection of datasets impossible to directly load on your device. Therefore, we will just preload all the samples and create a basic Dataset class to fed to the Dataloader.
[2]:
# ----------- Set Dataset path -------------
# If not this, change it with the right path
dataPath = 'Data/'
[3]:
def get_MMI_subject_data(
path: str,
subject: int,
pretrain_label: list[int]=[0,1,2,3,6,7,8,9],
finetune_label: list[int]=[4,5],
window: float=4.1,
overlap: float=0.,
):
"""
``get_MMI_subject_data`` will load and separate subject-specific
data from the Physionet EEG Motor Movement/Imagery (EEGMMI) Dataset
for Self-Supervised Learning (SSL) applications. Loaded data are those
already well-preprocessed and provided as a resource for the book:
Deep Learning for EEG-based Brain-Computer Interface: Representations,
Algorithms and Applications, by Dr. Xiang Zhang and Prof. Lina Yao
Data, tutorials, and more info about the provided format can be found
in the official git repository available at:
https://github.com/xiangzhang1015/Deep-Learning-for-BCI
Parameters
----------
path: str
Path to the data root folder. It will be concatenated with the subj's file name.
subject: int
An integer defining the subject ID. Must be in [1, 109].
pretrain_label: list[int]
A list of label to put in the pretraining dataset. Must be in [0,10].
Values are associated with the following labels are: 0: open eyes,
1: close eyes, 2: left hand, 3: right hand, 4: image left hand,
5: image right hand, 6: open fists, 7: open feet, 8: image fist,
9: image feet, 10: rest. Default = [0,1,2,3,6,7,8,9]
finetune_label: list[int]
Same as pretrain_label but for the fine-tuning dataset. Default = [4,5]
window: float
The length of the window to consider. Must be a float lower than 4.1.
Default = 4.1
overlap: float
The overlap between consecutive windows of the same trial. Must be in
[0,1). Default = 0
Returns
-------
pretrain_data: numpy array
Numpy array of shape [sample, channel, time] with all the subject's
samples to use for the pretraining
pretrain_lab: numpy array
Numpy array with the pretrain_data samples label
finetune_data: numpy array
Numpy array of shape [sample, channel, time] with all the subject's
samples to use for the fine-tuning
finetune_lab: numpy array
Numpy array with the finetune_data samples label
"""
# Just some checks to make this function more robust
if int(subject)<1 or int(subject)>109:
raise ValueError('wrong subject ID')
if not(isinstance(path,str)):
raise ValueError('path must be a string')
elif path[-1] != os.sep:
path = path + os.sep
if len(set(pretrain_label).intersection(set(finetune_label)))>0:
raise ValueError('pretraining and finetuning labels must be different')
if window<0 or window>4.1:
raise ValueError('window must be in [0,4.1]')
# load data
data = np.load(f'{dataPath}{int(subject)}.npy')
# get time points where the label change to speed up extraction
label_change = np.ediff1d(data[:,64]).nonzero()[0]
pretrain_data = []
pretrain_lab = []
finetune_data = []
finetune_lab = []
Nwindow = int(160*window) # Sampling rate is 160
Noverlap = int(Nwindow*overlap) # Round everything
idx = 0
# basically this block will scroll the loaded array from start to end
# jumping by (Nwindow-Noverlap) sample at a time. Conditions are:
# 1. The idx has a label to exclude, jump to the next segment
# 2. The idx has a label to include but there are not enough time samples
# to fill the entire window. Jump to the next segment.
# 3. The ids has a label to include and there are enough samples to fill
# the entire window. Add sample and jump by (Nwindow-Noverlap) steps.
while ( (idx+Nwindow) < data.shape[0]):
if data[idx,64] in pretrain_label:
if data[idx+Nwindow-1,64] == data[idx,64]:
pretrain_data.append(data[idx:idx+Nwindow,:64])
pretrain_lab.append(data[idx,64])
idx = idx+Nwindow-Noverlap
else:
idx = label_change[np.searchsorted(label_change,[idx],side='right')[0]]+1
elif data[idx,64] in finetune_label:
if data[idx+Nwindow-1,64] == data[idx,64]:
finetune_data.append(data[idx:idx+Nwindow,:64])
finetune_lab.append(data[idx,64])
idx = idx+Nwindow-Noverlap
else:
idx = label_change[np.searchsorted(label_change,[idx],side='right')[0]]+1
else:
idx = label_change[np.searchsorted(label_change,[idx],side='right')[0]]+1
pretrain_data = np.stack(pretrain_data, 0).astype('float32')
pretrain_data = np.transpose(pretrain_data, (0,2,1))
pretrain_lab = np.array(pretrain_lab).astype('float32')
finetune_data = np.stack(finetune_data, 0).astype('float32')
finetune_data = np.transpose(finetune_data, (0,2,1))
finetune_lab = np.array(finetune_lab).astype('float32')
return pretrain_data, pretrain_lab, finetune_data, finetune_lab
def gather_subjects_data(
path: str,
subject_ids: list,
pretrain_label: list[int]=[0,1,2,3,6,7,8,9],
finetune_label: list[int]=[4,5],
window: float=4.1,
overlap: float=0.0
):
"""
``gather_subjects_data`` calls the ``get_MMI_subject_data``
for each subject listed in subject_ids, then concatenate all the arrays.
"""
N = len(subject_ids)
Xpre = [None]*N
Ypre = [None]*N
Xfine = [None]*N
Yfine = [None]*N
for n, i in enumerate(subject_ids):
Xpre[n], Ypre[n], Xfine[n], Yfine[n] = get_MMI_subject_data(
dataPath,
subject = i,
pretrain_label = pretrain_label,
finetune_label = finetune_label,
window = window,
overlap = overlap
)
Xpre = torch.from_numpy( np.concatenate(Xpre,0))
Ypre = torch.from_numpy( np.concatenate(Ypre,0))
Xfine = torch.from_numpy( np.concatenate(Xfine,0))
Yfine = torch.from_numpy( np.concatenate(Yfine,0))
return Xpre, Ypre, Xfine, Yfine
[4]:
# random select subjects to put in train, val, and test
all_id = [i for i in range(1, 110)]
random.shuffle(all_id)
train_id = all_id[0:70]
val_id = all_id[70:70+17]
test_id = all_id[70+17:]
# create train tensors
Xpre_train, Ypre_train, Xfine_train, Yfine_train = gather_subjects_data(
path = dataPath, subject_ids = train_id
)
# create validation tensors
Xpre_val, Ypre_val, Xfine_val, Yfine_val = gather_subjects_data(
path = dataPath, subject_ids = val_id
)
# There's no need to have a test set during pretraining
_, _, Xfine_test, Yfine_test = gather_subjects_data(
path = dataPath, subject_ids = test_id
)
# directly rescale and encode fine_tuning data
Xfine_train = selfeeg.utils.scale_range_soft_clip(Xfine_train, 80, 3.5, 'uV', True)
Yfine_train = (Yfine_train > 4).to(dtype=torch.float32)
Xfine_val = selfeeg.utils.scale_range_soft_clip(Xfine_val, 80, 3.5, 'uV', True)
Yfine_val = (Yfine_val > 4).to(dtype=torch.float32)
Xfine_test = selfeeg.utils.scale_range_soft_clip(Xfine_test, 80, 3.5, 'uV', True)
Yfine_test = (Yfine_test > 4).to(dtype=torch.float32)
Pretraining Phase
Define Pretraining dataloaders
Since we have directly preloaded the entire dataset, there is no need to use the custom classes and function of the selfEEG’s dataloading module.
[5]:
# define some parameters
Chan = 64
freq = 160
window = 4.1
batchsize = 64
nb_classes=2
Samples = int(freq*window)
[6]:
class EEGMMIDataset(Dataset):
def __init__(self, X, Y=None):
super().__init__()
self.X = X
self.Y = Y
def __len__(self):
return self.X.shape[0]
def __getitem__(self,index):
if self.Y is None:
return self.X[index]
else:
return self.X[index], self.Y[index]
[7]:
# define training dataloader
trainset = EEGMMIDataset(Xpre_train)
trainloader = DataLoader(dataset = trainset, batch_size = batchsize)
# define validation dataloader
valset = EEGMMIDataset(Xpre_val)
valloader = DataLoader(dataset = valset, batch_size = batchsize, shuffle = False)
Define the data augmenter

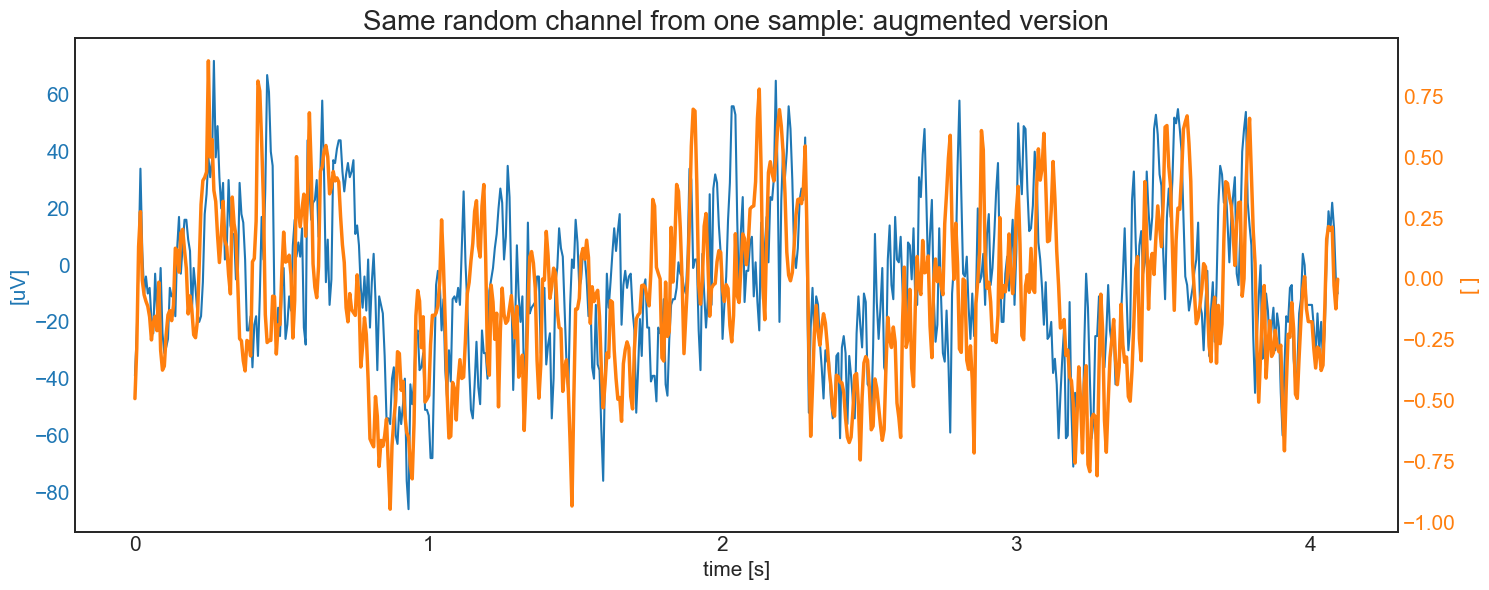

Now we need to define an augmenter. To keep things simple, we define an augmenter which combines:
the addition of some noise or channel lost from
add_band_noiseormasking.the
warporcrop_and_resizeorpermuteaugmentation.a final rescale of the range [-80, 80] uV in [-1, 1] with soft clipping with horizontal asintote of 3.5.
This is similar to the augmentation proposed in the augmentation module introductory book
[8]:
# DEFINE AUGMENTER
# First block: noise addition
AUG_band = aug.DynamicSingleAug(
aug.add_band_noise,
discrete_arg={
'bandwidth': ["delta", "theta", "alpha", "beta", (30,49) ],
'samplerate': freq,
'noise_range': 1
}
)
AUG_mask = aug.DynamicSingleAug(
aug.masking,
discrete_arg = {'mask_number': [1,2,3,4], 'masked_ratio': 0.25}
)
Block1 = aug.RandomAug(AUG_band, AUG_mask, p = [0.7, 0.3])
# second block: warp or crop and resize
AUG_crop = aug.DynamicSingleAug(
aug.crop_and_resize,
discrete_arg = {'batch_equal': True},
range_arg = {'N_cut': [1, 4], 'segments': [12,15]},
range_type = {'N_cut': True, 'segments': True}
)
AUG_permute = aug.DynamicSingleAug(
aug.permutation_signal,
discrete_arg = {'segments': [15], 'batch_equal': True},
range_arg = {'seg_to_per': [2, 5]},
range_type = {'seg_to_per': True}
)
AUG_warp = aug.DynamicSingleAug(
aug.warp_signal,
discrete_arg = {'segments': [10], 'batch_equal': True},
range_arg = {'squeeze_strength': [0.75,0.9], 'stretch_strength': [1.1,1.5]},
range_type = {'squeeze_strength': False, 'stretch_strength': False}
)
Block2 = aug.RandomAug(AUG_crop, AUG_permute, AUG_warp, p = [0.3,0.3,0.4])
# third block: rescale
Block3 = lambda x: selfeeg.utils.scale_range_soft_clip(x, 80, 3.5, 'uV', True)
# FINAL AUGMENTER: SEQUENCE OF THE THREE RANDOM LISTS
Augmenter = aug.SequentialAug(Block1, Block2, Block3)
[9]:
# visualize a random data augmentation
Sample = trainset.__getitem__(random.randint(0,len(trainset)))
t = np.linspace(0, Sample.shape[1]-1, Sample.shape[1])/freq
SampleAug = Augmenter(Sample)
RandChan= random.randint(0,Chan-1)
fig, ax1 = plt.subplots()
color = 'tab:blue'
ax1.set_xlabel('time [s]', fontsize=15)
ax1.set_ylabel('[uV]', color=color, fontsize=15)
ax1.plot(t, Sample[RandChan,:], color=color)
ax1.tick_params(axis='y', labelcolor=color, labelsize=15)
ax1.tick_params(axis='x', labelsize=15)
ax2 = ax1.twinx()
color = 'tab:orange'
ax2.set_ylabel('[ ]', color=color, fontsize=15) # we've already handled the x-label
ax2.plot(t, SampleAug[RandChan,:],color=color, linewidth=2.5)
ax2.tick_params(axis='y', labelsize=15, labelcolor=color)
plt.title('Same random channel from one sample: augmented version', fontsize=20)
fig.tight_layout()
plt.show()
Define pretraining model and other training objects
Now we need to define the pretraining model. To do that, we need to:
instantiate an nn.Module defining the encoder (backbone)
instantiate the right SSL module, giving the encoder and the network head’s spec.
For now, let’s use a simple EEGNet with default parameters, and SimCLR as the SSL algorithm.
NOTE 1
each model in the models module have an extra class with only the encoder with the name modelnameEncoder (e.g., EEGNetEncoder). This will make model creation much easier.
NOTE 2
each model in the ssl module can accept a list or a nn.Module to create the network head. In case of a list, the head will be a sequence of dense layer with input and output size equal to the values of the list. Batchnorm and activation are based on the original works.
WARNING
Remember to check if the encoder output size matches the head input size. All modules in the ssl class doesn’t check that.
[10]:
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
# Encoder
NNencoder= selfeeg.models.EEGNetEncoder(Chans=Chan)
# SSL model
head_size=[320, 64, 32]
SelfMdl = selfeeg.ssl.SimCLR(
encoder = NNencoder,
projection_head = head_size
).to(device=device)
# loss (fit method has a default loss based on the SSL algorithm)
loss=selfeeg.losses.simclr_loss
loss_arg={'temperature': 0.15}
# optimizer
optimizer = torch.optim.Adam(SelfMdl.parameters(), lr=1e-3)
# lr scheduler
scheduler = torch.optim.lr_scheduler.ExponentialLR(optimizer, gamma=0.97)
Pretrain the model
Each SSL algorithm has an already implemented fit method, similar to scikitlearn or Keras. Of course it’s not complete as the fit of bigger framewoks, but it certainly save you lots of lines of code and help you monitorate the training. Since this is just a tutorial we will run only 50 epochs of training
[11]:
loss_info = SelfMdl.fit(
train_dataloader = trainloader,
augmenter = Augmenter,
epochs = 50,
optimizer = optimizer,
loss_func = loss,
loss_args = loss_arg,
lr_scheduler = scheduler,
validation_dataloader = valloader,
verbose = False,
device = device,
return_loss_info = True
)
/home/delpup/miniconda3/envs/selfdlp/lib/python3.11/site-packages/torch/nn/modules/conv.py:459: UserWarning: Using padding='same' with even kernel lengths and odd dilation may require a zero-padded copy of the input be created (Triggered internally at /opt/conda/conda-bld/pytorch_1682343995622/work/aten/src/ATen/native/Convolution.cpp:1003.)
return F.conv2d(input, weight, bias, self.stride,
Fine-tuning Phase
Now that the encoder is pretrained, let’s perform fine-tuning. To do that, we need to recreate the right dataloaders and models. After that, the selfeeg library provides a fine-tuning function that is similar to the fit method.
Define fine-tuning dataloaders
This phase is basically the same as the previous one. The only differences are:
We are using the fine-tuning data
We are creating a test set for evaluation
We need to extract a label from each sample.
The used classes and methods are the same already used from the dataloading module
[12]:
# define training dataloader
trainsetFT = EEGMMIDataset(Xfine_train, Yfine_train)
trainloaderFT = DataLoader(dataset = trainsetFT, batch_size= batchsize)
# define validation dataloader
valsetFT = EEGMMIDataset(Xfine_val, Yfine_val)
valloaderFT = DataLoader(dataset = valsetFT, batch_size= batchsize, shuffle=False)
# define test dataloader
testsetFT = EEGMMIDataset(Xfine_test, Yfine_test)
testloaderFT = DataLoader(dataset = testsetFT, batch_size= batchsize, shuffle=False)
Define fine-tuning model and other training objects
Remember that in this phase you need to transfer the pretrained encoder
[21]:
FinalMdl = selfeeg.models.EEGNet(nb_classes = 2, Chans = Chan, Samples = Samples)
# Transfer the pretrained backbone and
# move the final model to the chosen device
SelfMdl.train()
SelfMdl.to(device='cpu')
FinalMdl.encoder = SelfMdl.get_encoder()
FinalMdl.train()
FinalMdl.to(device=device)
# Define Loss
def loss_fineTuning(yhat, ytrue):
yhat = torch.squeeze(yhat)
return F.binary_cross_entropy_with_logits(yhat, ytrue)
# Define EarlyStopper
earlystopFT = selfeeg.ssl.EarlyStopping(
patience=20, min_delta=1e-03, record_best_weights=True)
Fine-tuning
Fine-tuning can be easily performed with the fine-tuning method.
NOTE 1
it is better to first pretrain only the new head, then update all model’s weights.
[22]:
# Define Optimizer for warm-up
optimizerFT = torch.optim.Adam(FinalMdl.parameters(), lr=0.001)
# Define Optimizer
gamma = 0.995
optimizerFT2 = torch.optim.Adam(FinalMdl.parameters(), lr=0.0009)
schedulerFT2 = torch.optim.lr_scheduler.ExponentialLR(optimizerFT2, gamma=gamma)
[23]:
# START FINE-TUNING
# First warm up by freezing the backbone
do_warmup=True
if do_warmup:
FinalMdl.encoder.requires_grad_(False)
finetuning_loss=selfeeg.ssl.fine_tune(
model = FinalMdl,
train_dataloader = trainloaderFT,
epochs = 20,
optimizer = optimizerFT,
loss_func = loss_fineTuning,
validation_dataloader = valloaderFT,
verbose = False,
device = device,
return_loss_info = True
)
if do_warmup:
FinalMdl.encoder.requires_grad_(True)
finetuning_loss=selfeeg.ssl.fine_tune(
model = FinalMdl,
train_dataloader = trainloaderFT,
epochs = 150,
optimizer = optimizerFT2,
loss_func = loss_fineTuning,
lr_scheduler = schedulerFT2,
EarlyStopper = earlystopFT,
validation_dataloader = valloaderFT,
verbose = False,
device = device,
return_loss_info = True
)

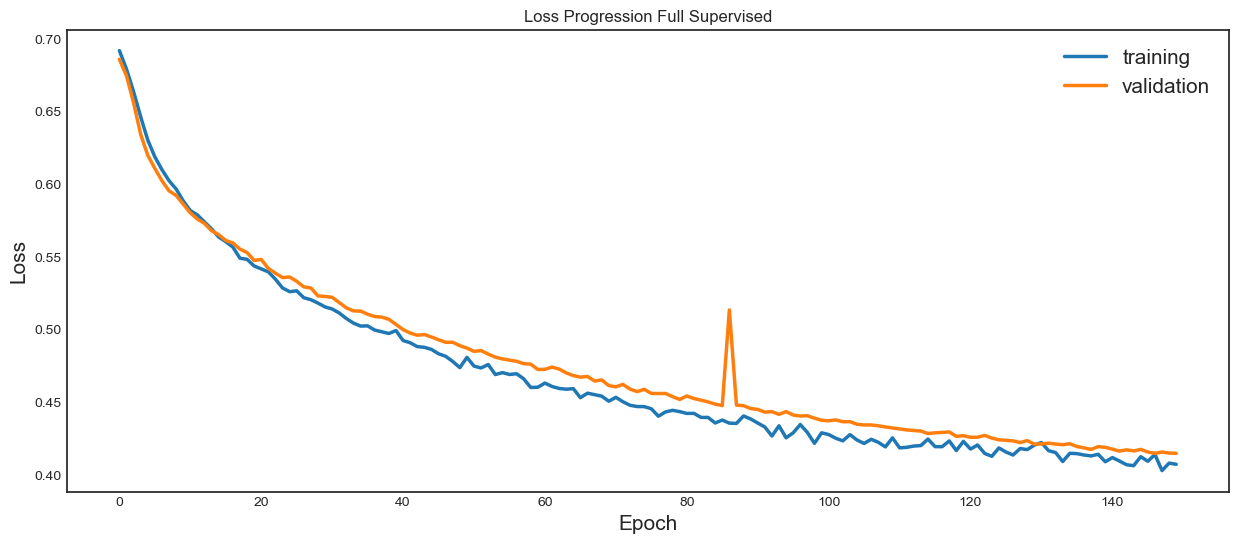

[24]:
plt.plot([i for i in range(len(finetuning_loss))],
[finetuning_loss[i][0] for i in range(len(finetuning_loss))],
linewidth=2.5)
plt.plot([i for i in range(len(finetuning_loss))],
[finetuning_loss[i][1] for i in range(len(finetuning_loss))],
linewidth=2.5)
plt.title('Loss Progression Full Supervised')
plt.xlabel('Epoch', fontsize=15)
plt.ylabel('Loss', fontsize=15)
plt.legend(['training', 'validation'],fontsize=15 )
plt.show()
Evaluate fine-tuned model
Now you can evaluate your model in whatever method you prefer. Here is a simple example with the classification report from sklearn.
[25]:
nb_classes=2
FinalMdl.to(device=device)
FinalMdl.eval()
ytrue=torch.zeros(len(testloaderFT.dataset))
ypred=torch.zeros_like(ytrue)
cnt=0
for i, (X, Y) in enumerate(testloaderFT):
X=X.to(device=device)
ytrue[cnt:cnt+X.shape[0]]= Y
with torch.no_grad():
yhat = torch.sigmoid(FinalMdl(X)).to(device='cpu')
ypred[cnt:cnt+X.shape[0]] = torch.squeeze(yhat)
cnt += X.shape[0]
print('Results of trivial Example\n')
print(classification_report(ytrue,ypred>0.5))
Results of trivial Example
precision recall f1-score support
0.0 0.81 0.83 0.82 486
1.0 0.83 0.80 0.81 483
accuracy 0.82 969
macro avg 0.82 0.82 0.82 969
weighted avg 0.82 0.82 0.82 969
Comparison with full supervised
Just for comparison, let’s see if there is at least a slightly improvement compared to a standard full supervised pipeline
[26]:
# Additional Model is EEGNet, which will perform slightly better in this case
FinalMdl2 = selfeeg.models.EEGNet(nb_classes = 2, Chans = Chan, Samples = Samples)
FinalMdl2.to(device=device)
gamma = 0.995
optimizerFT = torch.optim.Adam(FinalMdl2.parameters(), lr=0.0001)
schedulerFT = torch.optim.lr_scheduler.ExponentialLR(optimizerFT, gamma=gamma)
earlystopFT2 = selfeeg.ssl.EarlyStopping(
patience=10, min_delta=1e-03, record_best_weights=True
)
finetuning_loss = selfeeg.ssl.fine_tune(
model = FinalMdl2,
train_dataloader = trainloaderFT,
epochs = 150,
optimizer = optimizerFT,
loss_func = loss_fineTuning,
lr_scheduler = schedulerFT,
EarlyStopper = earlystopFT2,
validation_dataloader = valloaderFT,
verbose = False,
device = device,
return_loss_info = True
)

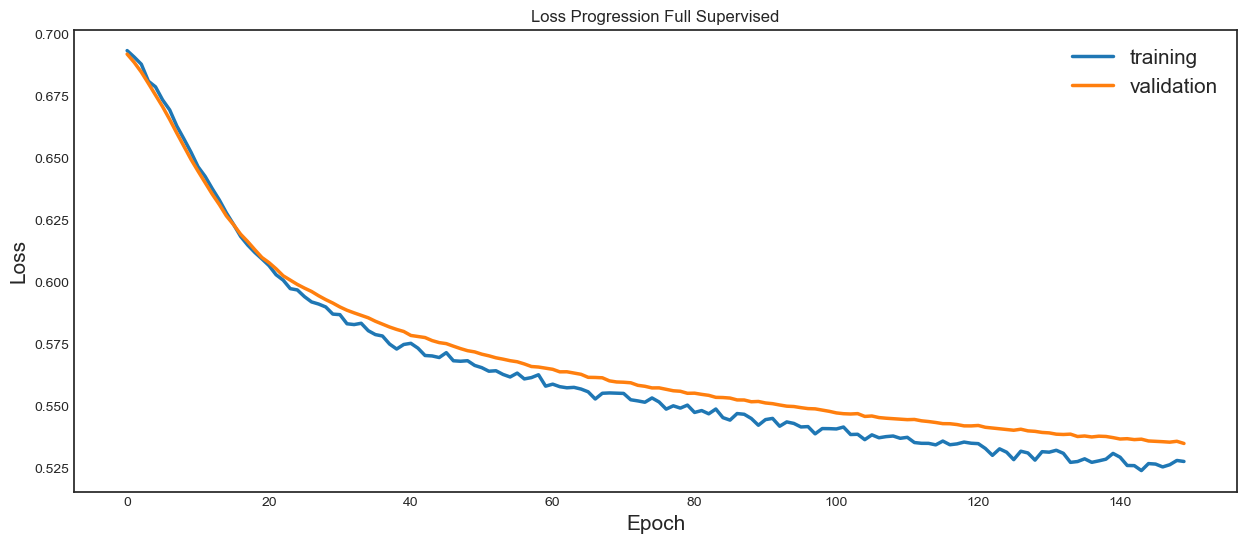

[27]:
plt.plot([i for i in range(len(finetuning_loss))],
[finetuning_loss[i][0] for i in range(len(finetuning_loss))],
linewidth=2.5)
plt.plot([i for i in range(len(finetuning_loss))],
[finetuning_loss[i][1] for i in range(len(finetuning_loss))],
linewidth=2.5)
plt.title('Loss Progression Full Supervised')
plt.xlabel('Epoch', fontsize=15)
plt.ylabel('Loss', fontsize=15)
plt.legend(['training', 'validation'],fontsize=15 )
plt.show()
[28]:
FinalMdl2.to(device=device)
FinalMdl2.eval()
ytrue=torch.zeros(len(testloaderFT.dataset))
ypred=torch.zeros_like(ytrue)
cnt=0
for i, (X, Y) in enumerate(testloaderFT):
X=X.to(device=device)
ytrue[cnt:cnt+X.shape[0]]= Y
with torch.no_grad():
yhat = torch.sigmoid(FinalMdl2(X)).to(device='cpu')
ypred[cnt:cnt+X.shape[0]] = torch.squeeze(yhat)
cnt += X.shape[0]
print('Results of trivial Example\n')
print(classification_report(ytrue,ypred>0.5))
Results of trivial Example
precision recall f1-score support
0.0 0.81 0.80 0.80 486
1.0 0.80 0.81 0.80 483
accuracy 0.80 969
macro avg 0.80 0.80 0.80 969
weighted avg 0.80 0.80 0.80 969
We can see that the pretrained model has achieved a better validation loss in less epochs compared to the full-supervised strategy. Accuracies and F1-scores are almost identical, but this is expected considering that this tutorial uses only a small dataset and EEGNet, which is a very small model.
